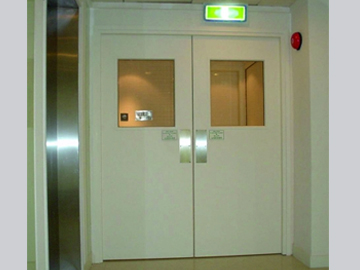

46 mm thick steel Check door of 60/120 minutes Fire rating confirming to BS ;476
Part-22and IS : 3614 Part-II Fabricated with 2 nos 18SWG galvenised steel sheet sandwiching with proprietary fire resistant insulation materials in-between.
The door frames are manufactured from 16SWG galvenised steel sheet pressed form to double rebate profile of size 143mm x 57mm. The door frame and door shutter are fitted with SS BALL BEARING HINGES (100X75X3MM) and are coated with one coat of fire and corrosion resistant primer.

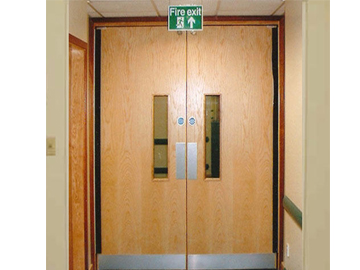

DOOR FRAME Wooden Door Frame of hard wood / teak wood of section115mm x 70mm with heat activated intumescent seal strip of size 10 x4mm and one coat of Fire & anti-termite primer.
DOOR SHUTTER 42mm thick asbestos free composite Fire / Smoke check shutters of 60 minutes fire rating confirming to BS ; 476 Part - 22 & IS : 3614 Part - II comprising of two 12mm thick Calcium Silicate boards sandwiching 12mm thick Proprietory fire resistance insulation material faced with 3mm thick commercial ply facing on both sides with heat activated intumescent fire seal strip size 10mm x 4mm mounted in the grooves on three sides except bottom and one coat of anti-termite fire retardant primer.
DOOR FRAME Wooden Door Frame of hard wood/teak wood section 150mm x 95mm with heat ativated intumescent fire seal strip of size 15mm x 4mm and finished with one coat of anti-termite fire retardant primer or paint and fitted with acoustic seal on all three sides.

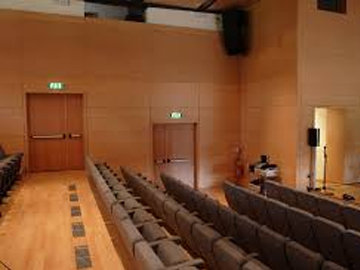

DOOR SHUTTER 65mm thick acoustic cum fire/smoke check Shutter of 38 db acoustic cum of 120 minutes rating confirming to BS 476 Part-22 & IS: 3614 part-2 comprising of sandwiching 29mm thick fire resistance insulation material between two 12mm thick calcium silicate board faced with 6mm thick commercial/teakply with heat activated intumescent fire seal strip of size 15mm x 4mm mounted in the grooves of hardwood lipping on all three sides except bottom along with acoustic seal

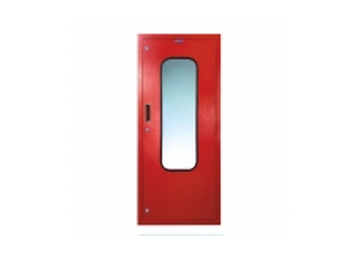

We are leading supplier of Fire Rated Shaft Doors. This door is highly suitable for installation in various commercial places , Residential Building, Hospital.
Fire Doors are manufactured using standard quality of galvanized steel sheets.

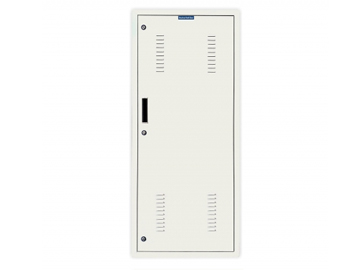

We provide high quality and reliable Electrical Shaft doors that is sued in many residential as well as commercial buildings. These doors are widely regarded in the market for their rugged construction, clever designs, easy installation, etc. Owing to their clever design, these doors are sure to provide much needed protection to all your electrical systems. These are widely demanded in the market for their resistance to rust, corrosion and other such factors.

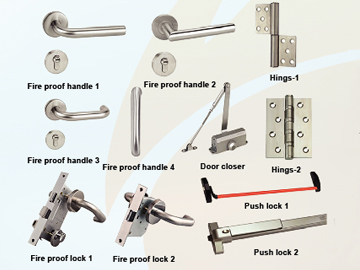

We provide a wide range of accessories and electrical business entryways, working equipment, and controls including: Automatic entry ways, Revolving entry ways, All water powered nearer worked swing entry ways, Roller grilles and shades, Sliding and swing doors, Access control and electric locking
